Hi All,

Power Platform has become one the most set of tools that many organizations are leveraging. Power Platform has the robust power of Power Apps, Power Automate and Power BI into one powerful business application platform that helps citizen developers as well as pro developers in providing quick and easy app building and data insights.

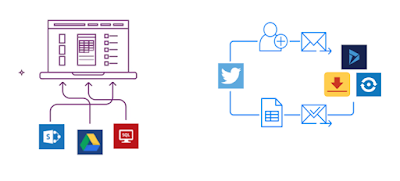

Microsoft Power Platform is low-code platform that spans Office 365, Azure, Dynamics 365, and standalone applications a shown below

Microsoft Power Platform is low-code platform that spans Office 365, Azure, Dynamics 365, and standalone applications a shown below

Figure 1 Credit: Microsoft

The best thing about Microsoft Power Platform is that is caters not only for citizen developers but also for professional developers as shown:

Why needs an API in Power Platform?

Power Platform leverages Microsoft services to connect to other services such as SharePoint, OneDrive as 3^rd party services such as MailChimp, Adobe Sign etc.

What is an API?

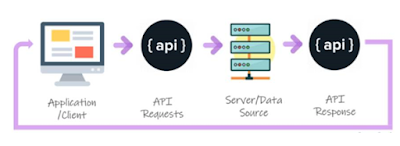

API (Application Programming Interface) that allows two applications to talk to each other.

for e.g. A user initiates Power Apps (Application) to get a signature leveraging Adobe Sign, this will be the API call from Application (Power Apps) and Adobe Sign as a data source as shown below.

What is connector?

A connector is a wrapper around an API that allows the underlying service to talk to Power Automate and Power Apps.

Type of connectors

You have 2 types of connectors.

1. Public connectors (available to all)

2. Custom connectors (built for your organization)

Today we will build 2 simple custom connectors, one for Power Automate and another for Power Apps.

A) Weather API (with Power Automate)

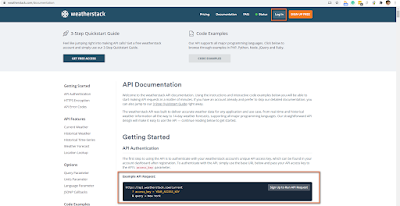

For this API, you need to create an account so that you can use an API key.

· Navigate to Office.com

· Go to make.powerapps.com

· Switch to your environment where want to create custom connector. I use Power Apps community plan which is suitable to development and NOT suitable to production environment.

· Read through the https://aka.ms/powerappscommunityplan documentation or Use this video how to get started with Power Apps Community Plan https://www.youtube.com/watch?v=VyrjpdVm_Ko

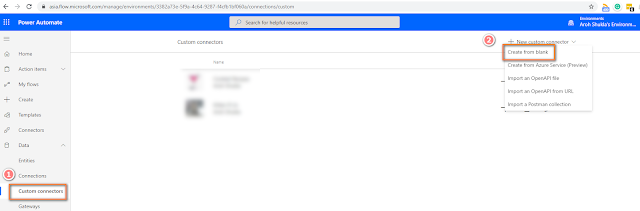

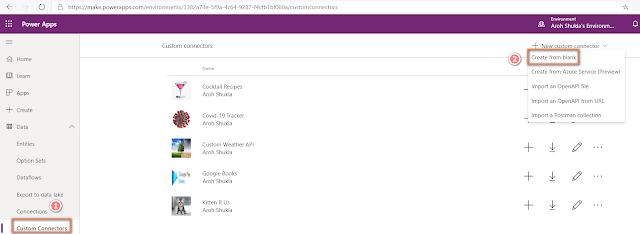

· Power Apps >> Home >> Data >> Custom Connectors >> Create from blank

· Create a custom connector and it as Custom Connector and click on Continue

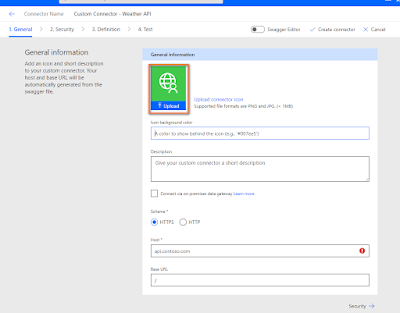

· Upload a custom image for the connector.

· In the General page fill the details:
Icon colour: #007ee5
Description: Retrieve the weather by using http://api.weatherstack.com/
Scheme: Change to HTTP:
Host: api.weatherstack.com
Base URL: /

· Click Security to click on the next screen.

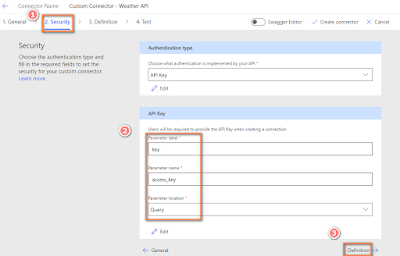

The authentication type should be API key.

Create an API key with key as Parameter label and Parameter name as access key; switch the parameter location to Query as illustrated:
Parameter label: key
Parameter name: access_key

Parameter location: Query

· In next step which is Definition and fill in the details:
Summary: Get weather
Description: Get weather in a specific city
Operation ID: GetWeather

The operation ID will be in our Power Automate flow.

· In a new browser tab, type a weather request to make sure it works fine and also to generate sample data that we will reuse in our connector definition with the access_key and query parameter

Endpoint’s URL (Request):
http://api.weatherstack.com/current?access_key=2cb0533199c00cfc699963d7a0728881&query=Mumbai

Response (Output):
{"request":{"type":"City","query":"Mumbai, India","language":"en","unit":"m"},"location":{"name":"Mumbai","country":"India","region":"Maharashtra","lat":"18.975","lon":"72.826","timezone_id":"Asia\/Kolkata","localtime":"2020-07-19 16:28","localtime_epoch":1595176080,"utc_offset":"5.50"},"current":{"observation_time":"10:58 AM","temperature":31,"weather_code":143,"weather_icons":["https:\/\/assets.weatherstack.com\/images\/wsymbols01_png_64\/wsymbol_0006_mist.png"],"weather_descriptions":["Haze"],"wind_speed":22,"wind_degree":260,"wind_dir":"W","pressure":1004,"precip":2.1,"humidity":75,"cloudcover":75,"feelslike":39,"uv_index":6,"visibility":5,"is_day":"yes"}}

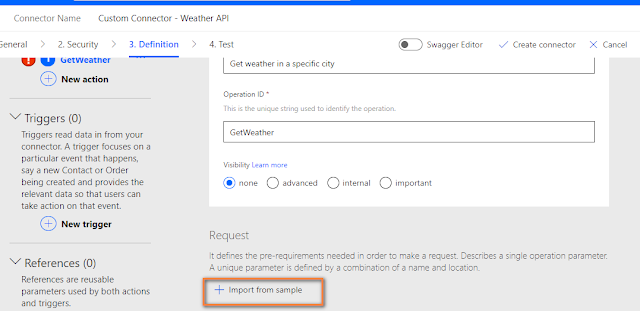

· Within the Definition page, locate Request section, click Import from sample

· We need to get weather information for a City. We use Get Verb >> URL
Simply paste: http://api.weatherstack.com/current?access_key=2cb0533199c00cfc699963d7a0728881&query=Mumbai as shown.

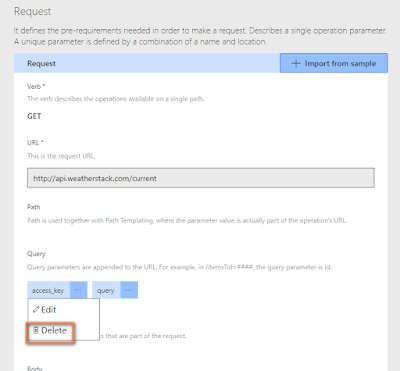

· Delete the access_key from Query parameter as end users will not access.

· Click on Edit on the query parameter

· Enter parameters details as shown below:
Name: query
Description: Fill in the city
Summary: City Name
Is Required: Yes

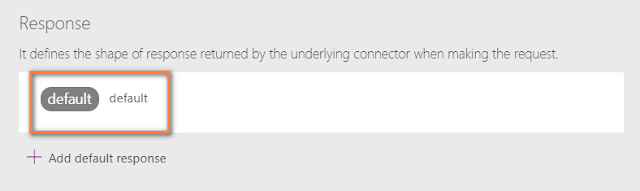

· Click on Default under the Response section,

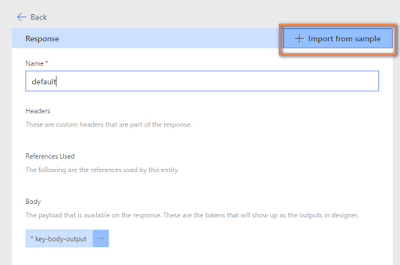

· Click on Import from sample option

· Copy the Weather’s API JSON content.
{"request":{"type":"City","query":"Mumbai, India","language":"en","unit":"m"},"location":{"name":"Mumbai","country":"India","region":"Maharashtra","lat":"18.975","lon":"72.826","timezone_id":"Asia\/Kolkata","localtime":"2020-07-19 16:28","localtime_epoch":1595176080,"utc_offset":"5.50"},"current":{"observation_time":"10:58 AM","temperature":31,"weather_code":143,"weather_icons":["https:\/\/assets.weatherstack.com\/images\/wsymbols01_png_64\/wsymbol_0006_mist.png"],"weather_descriptions":["Haze"],"wind_speed":22,"wind_degree":260,"wind_dir":"W","pressure":1004,"precip":2.1,"humidity":75,"cloudcover":75,"feelslike":39,"uv_index":6,"visibility":5,"is_day":"yes"}}

· In Power Automate’s Response windows, paste the content as Body from Weather’s API JSON and click on Import.

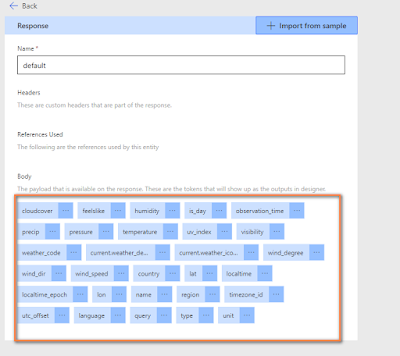

· You can view JSON payload within Body.

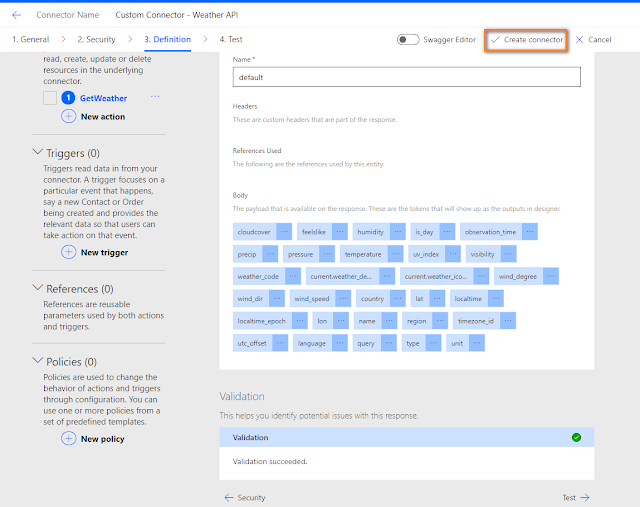

· Click on Create connector

· Click on Test.

· Click on New connection

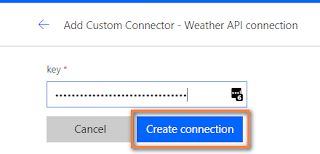

· Enter the API key and click on Create Connection.

· Click on Refresh

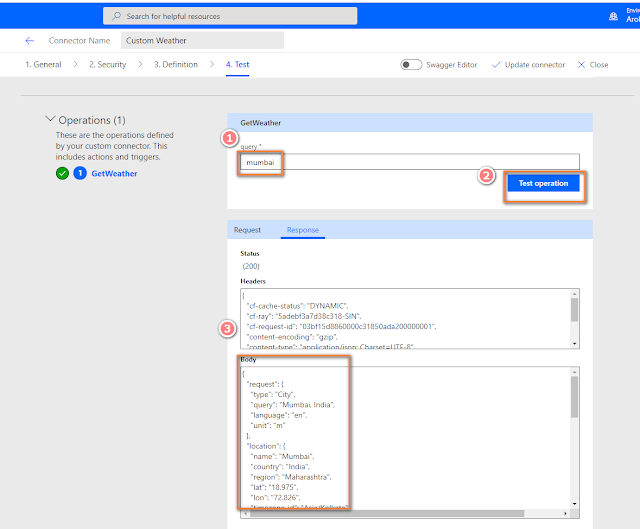

· You must have connected to this API within Connection section and type any city name:

· Results will display all entries for that location.

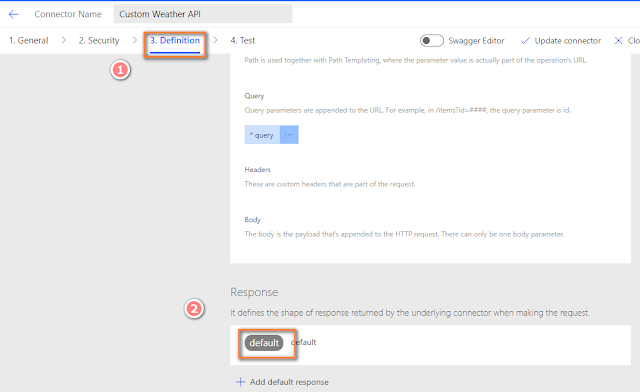

· Go back to Definition, click on Default under Response

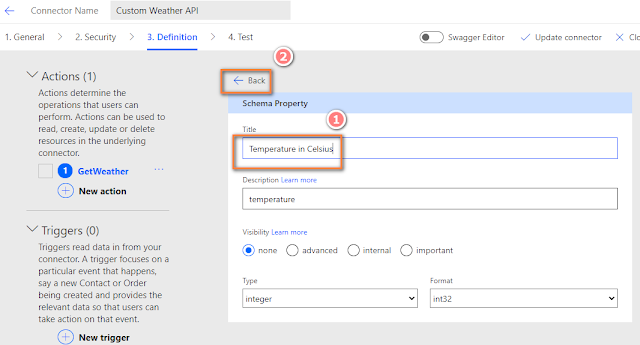

· Edit on Temperature property.

· Update the title as Temperature in Celsius

· Update Connector.

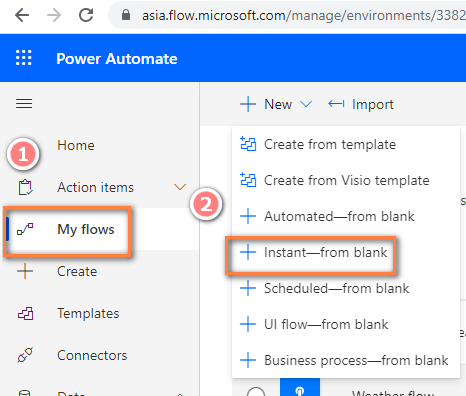

· My Flow >> Instant from blank >> Custom Weather API >> Create

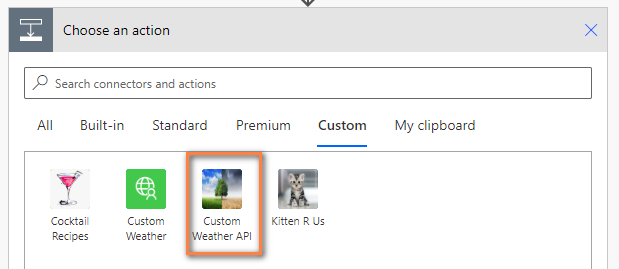

· Choose Action >> Custom >> Select Custom Weather API

· Set a city name

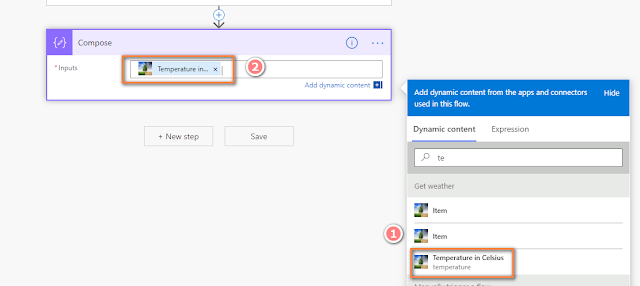

· Create a Compose action and get the Temperature property

· Test the flow and check the results.

A) Google Books (with Power Automate)

In this example we will get retrieve Books information using Google Books API.
We will make small Books library app as shown.

· Power Apps >> Home >> Data >> Custom Connectors >> Create from blank

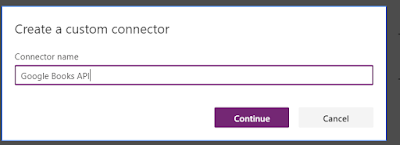

· Create a custom connector, it as Google Books API and click on Continue

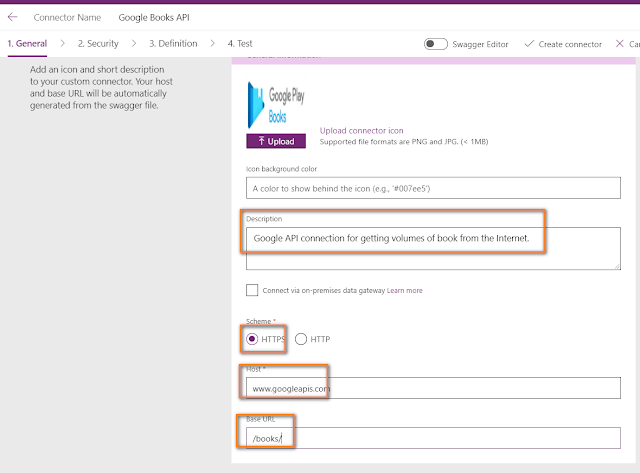

· In the Definition in fills the details:
Upload custom image
Icon background: #007ee5
Description: Google API connection for getting volumes of book from the Internet.
Scheme: HTTPS
Host: www.googleapis.com
Base URL: /books/

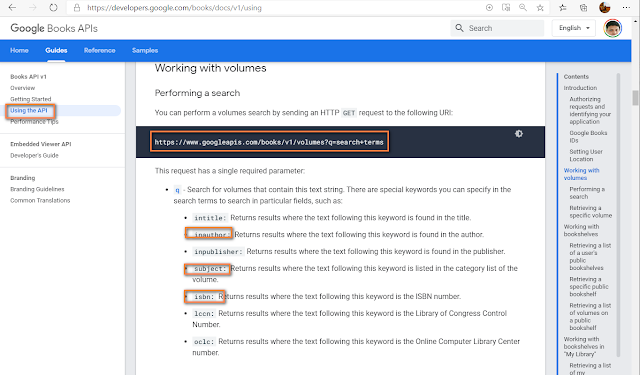

· Verify the Google Books API https://developers.google.com/books/docs/v1/using
We will perform a search for Google Book volumes with this end URL point https://www.googleapis.com/books/v1/volumes?q=search+terms

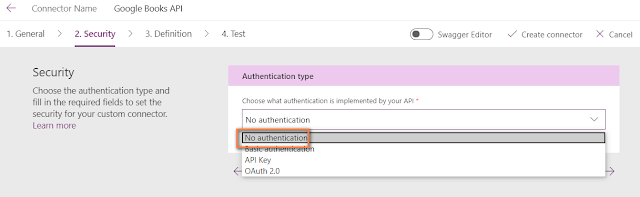

· This time we will not use any authentication and simply move to Definition page.

· In the Definition page, create a new action called as GetBook and fill in details a follows

Summary: Get Book
Description: Get a volume from the API
Operation ID * GetBook

The Operation ID will be used in Power Apps

· Now, got Google Books API, we have to make minor modifications so that we can use for Endpoints for our custom connector Request and Response portion.

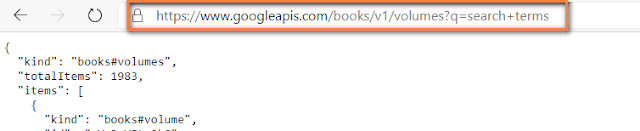

· Request would be: https://www.googleapis.com/books/v1/volumes?q=search+terms

· Response would be: https://www.googleapis.com/books/v1/volumes?q=ISBN:9780143442295

· In Definition, go to REQUEST and click on Import from Sample , Use Get Verb and type the URL endpoint https://www.googleapis.com/books/v1/volumes?q=search+terms and click on Import.

· In Definition, go to RESPONSE, click on Default

and click on Import from Sample ,

and paste the JSON payload

to Body and click on Import.

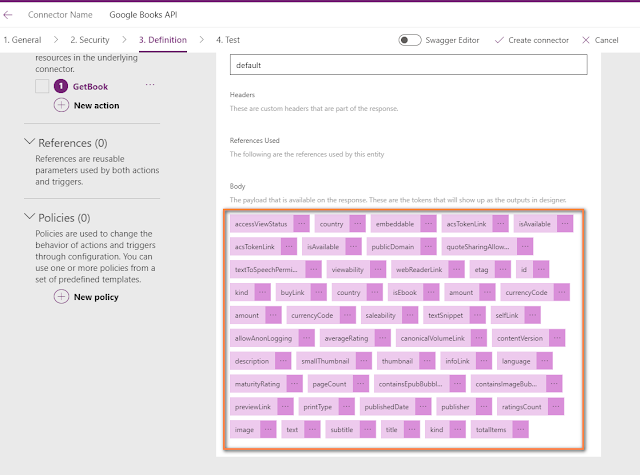

· Now, we got a many properties from the JSON payload.

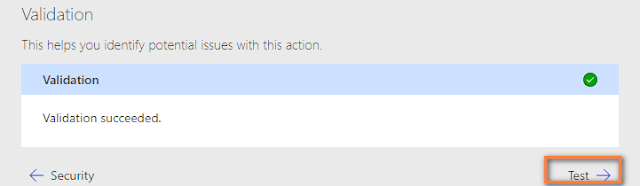

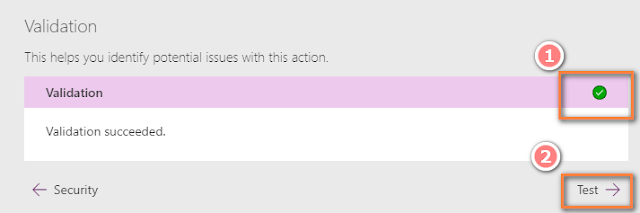

· Click on Validation link to proceed.

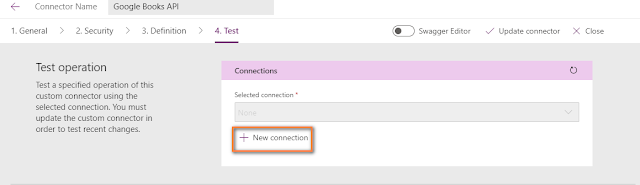

· Click on New Connection

· Click on Create prompt.

· Next, click on Connections

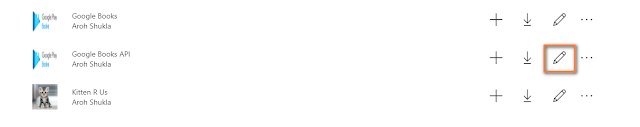

· Click on Edit icon.

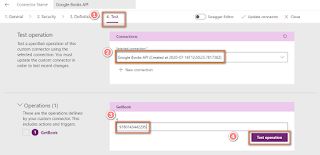

· Test the connection, supply an ISBN 9780143442295 and click on Test operation.

· We get 200 response and check if we get correct details.

NOTE: Please note creating a custom connector takes time and we you rush you might get 404 error. Please be patient and wait for 2-3 minutes once custom connector and then test operation

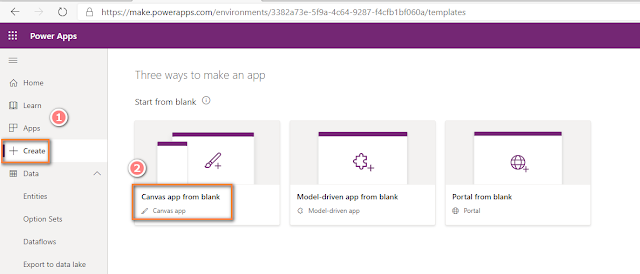

· Create a new simple Power Apps.

· Connect to newly created Google Books API and connect in our sample Power Apps.

· Drag Text box and Button.

1· On Button add the following code:
ClearCollect(Book,GoogleBooks.GetBook({q:TextInput1.Text}))
Book is collection in Power Apps.

· Run the Power Apps and type an ISBN 9780143442295.

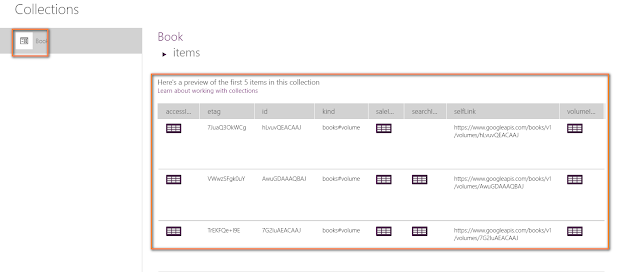

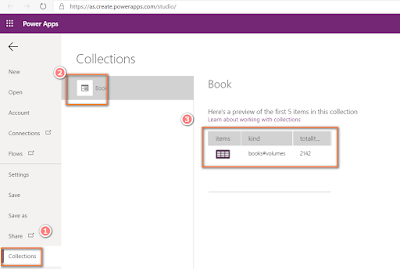

· Go to File >> Collection >> Book >> we have around 2142 records.

· Now, for a complete solution, we need a store our books library solution in some database repository. For that we keep our books in Common Data Service (CDS).

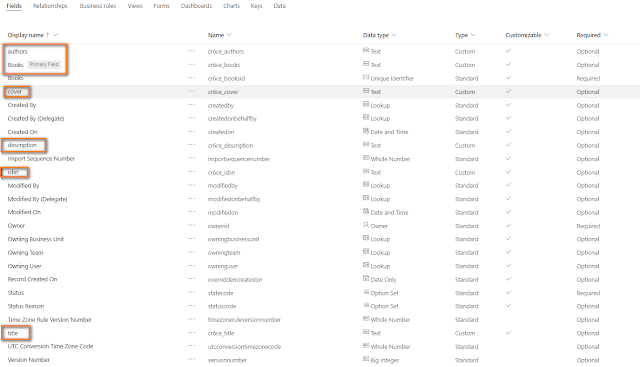

I had defined a custom entity called Books and a couple of fields as follows:

a. Books – Primary field – optional

b. Authors – optional

c. Cover – optional

d. Description – optional

e. ISBN - optional

f. Title – optional
